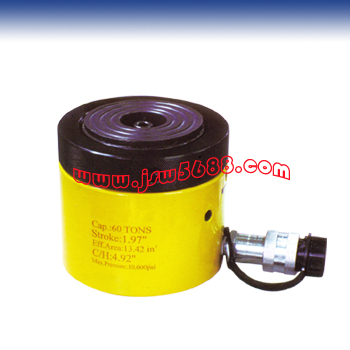

CLL系列自鎖型油缸
扁平設(shè)計適用于狹窄空間。
主軸及上鎖帽特殊處理，耐磨，抗腐蝕。
安全鎖帽適于長時間荷重支撐。
整體性傾斜墊塊可有效改善偏荷載狀況。
揚(yáng)程極限時具溢油孔作用。
單動重力回縮。
|
型號\參數(shù) |
噸位 tons |
行程 mm |
油量 ml |
本體高 (mm) |
重量 kg |
|
CLL-502 |
50 |
50 |
361 |
164 |
16 |
|
CLL-504 |
100 |
721 |
214 |
21 |
|
|
CLL-506 |
150 |
1065 |
264 |
26 |
|
|
CLL-508 |
200 |
1426 |
314 |
31 |
|
|
CLL-5010 |
250 |
1786 |
364 |
36 |
|
|
CLL-5012 |
300 |
2147 |
414 |
41 |
|
|
CLL-1002 |
100 |
50 |
672 |
187 |
31 |
|
CLL-1004 |
100 |
1327 |
237 |
39 |
|
|
CLL-1006 |
150 |
1999 |
287 |
48 |
|
|
CLL-1008 |
200 |
2671 |
337 |
57 |
|
|
CLL-10010 |
250 |
3327 |
387 |
65 |
|
|
CLL-10012 |
300 |
3998 |
437 |
74 |
|
|
CLL-1502 |
150 |
50 |
983 |
209 |
53 |
|
CLL-1504 |
100 |
1983 |
259 |
66 |
|
|
CLL-1506 |
150 |
2966 |
309 |
78 |
|
|
CLL-1508 |
200 |
3966 |
359 |
92 |
|
|
CLL-15010 |
250 |
4949 |
409 |
105 |
|
|
CLL-15012 |
300 |
5932 |
459 |
118 |
|
|
CLL-2002 |
200 |
50 |
1327 |
243 |
83 |
|
CLL-2006 |
150 |
3998 |
343 |
118 |
|
|
CLL-20012 |
300 |
6700 |
493 |
170 |
|
|
CLL-2502 |
250 |
50 |
1835 |
249 |
116 |
|
CLL-2506 |
150 |
5490 |
349 |
163 |
|
|
CLL-25010 |
250 |
9160 |
449 |
210 |
|
|
CLL-3002 |
300 |
50 |
2278 |
295 |
173 |
|
CLL-3006 |
150 |
6850 |
395 |
233 |
|
|
CLL-30010 |
250 |
11422 |
495 |
293 |
|
|
CLL-4002 |
400 |
50 |
2802 |
335 |
251 |
|
CLL-4006 |
150 |
8390 |
435 |
327 |
|
|
CLL-40010 |
250 |
13978 |
535 |
403 |
|
|
CLL-5002 |
500 |
50 |
3654 |
375 |
367 |
|
CLL-5006 |
150 |
10947 |
475 |
467 |
|
|
CLL-50010 |
250 |
18239 |
575 |
568 |
|
|
CLL-6002 |
600 |
50 |
4277 |
395 |
447 |
|
CLL-6006 |
150 |
12847 |
495 |
563 |
|
|
CLL-60010 |
250 |
21418 |
595 |
680 |
|
|
CLL-8002 |
800 |
50 |
5899 |
455 |
711 |
|
CLL-8006 |
150 |
17682 |
555 |
871 |
|
|
CLL-80010 |
250 |
29464 |
655 |
1031 |
|
|
CLL-10002 |
1000 |
50 |
7325 |
495 |
951 |
|
CLL-10006 |
150 |
21975 |
595 |
1143 |
|
|
CLL-100010 |
250 |
36609 |
695 |
1335 |
